Mikeslab High Performance Racing Hydrofoils.

To order a Mikeslab hydrofoil please contact orders@mikeslab.com

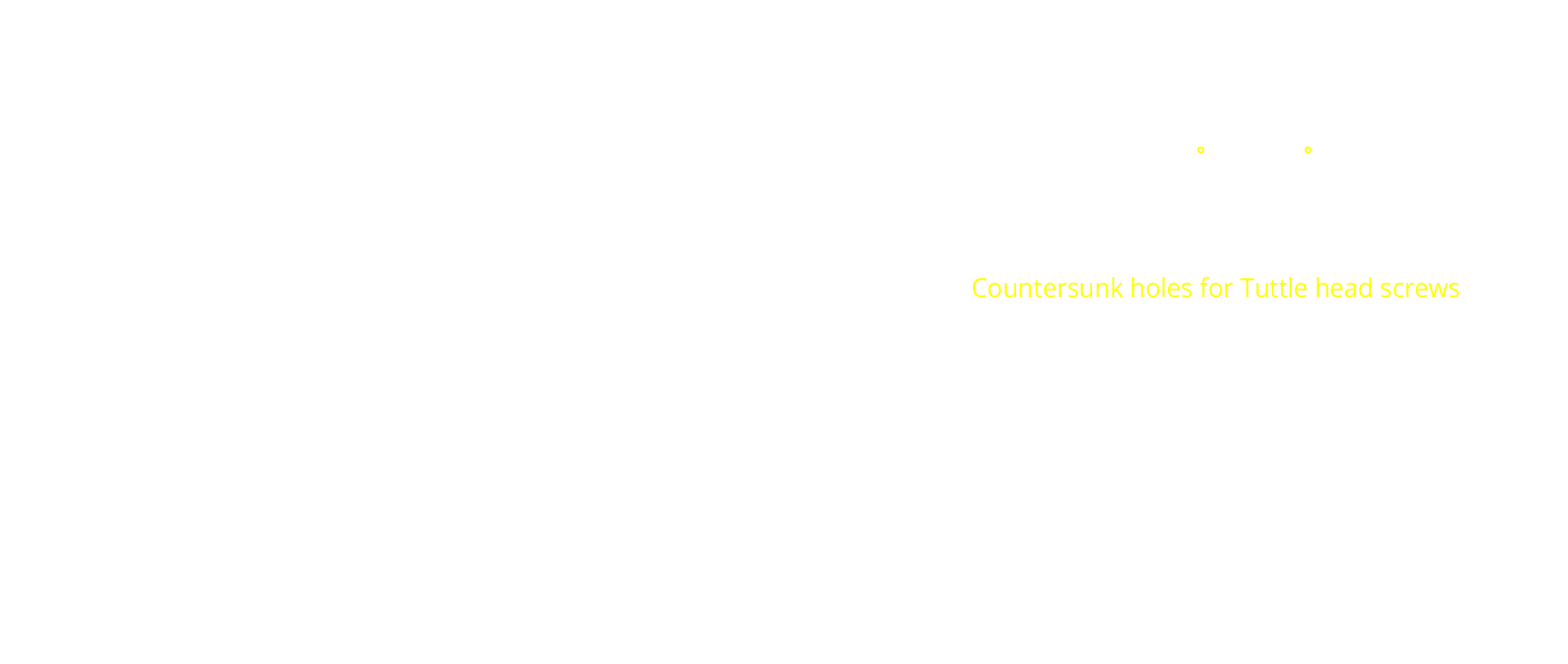

Board Specification

Mikeslabs hydrofoils will perform their best with the following board specification:

Download or view a pdf

Download or view the original Tuttle box specification in pdf

Hardware Specification

Should you lose or wish to replace your original hardware:

Top screws to attach board to Tuttle head are 316 Stainless Steel Phillips Flat Head Screws. 1/4"-20 Thread Size (length depends on your board's thickness).

Bottom large screws (three) to attach wingset to strut are 316 Stainless Steel Hex Drive Flat Head Screws. 1/4"-20 Thread Size, 2" long.

Bottom small screw to attach wingset to strut is 316 Stainless Steel Hex Drive Flat Head Screw. 10-24 Thread Size, 1-1/8" long.

The correct size Stainless Steel L-key for the small screw is 5/32" Size

All of the above hardware can be ordered from McMaster-Carr

For European clients that wish to convert their Tuttle head to metric hardware, you can order M6 metric barrel nuts from Chinook

How to tune your hydrofoil

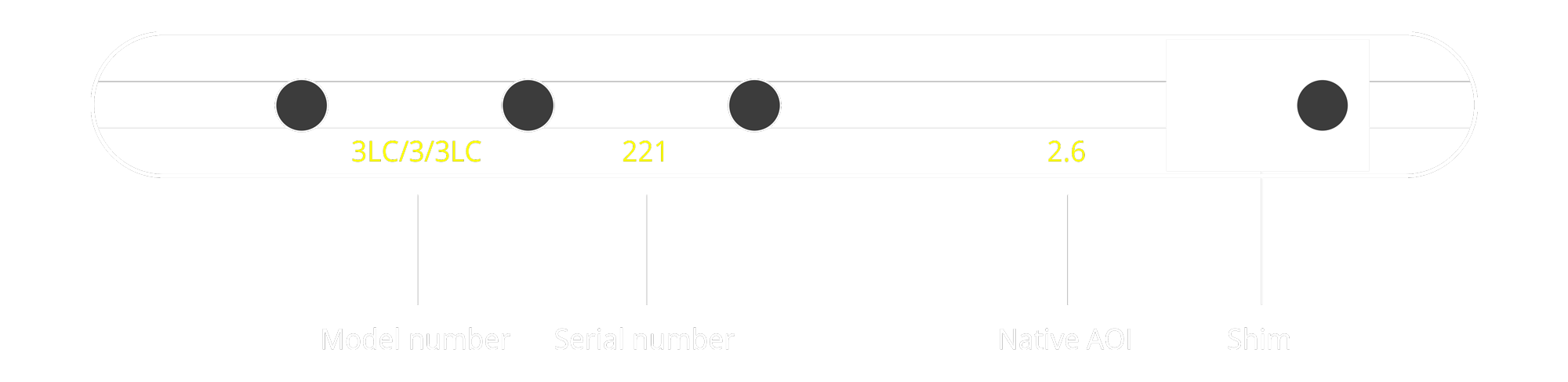

Your wingset features the following information etched into the attachment area:

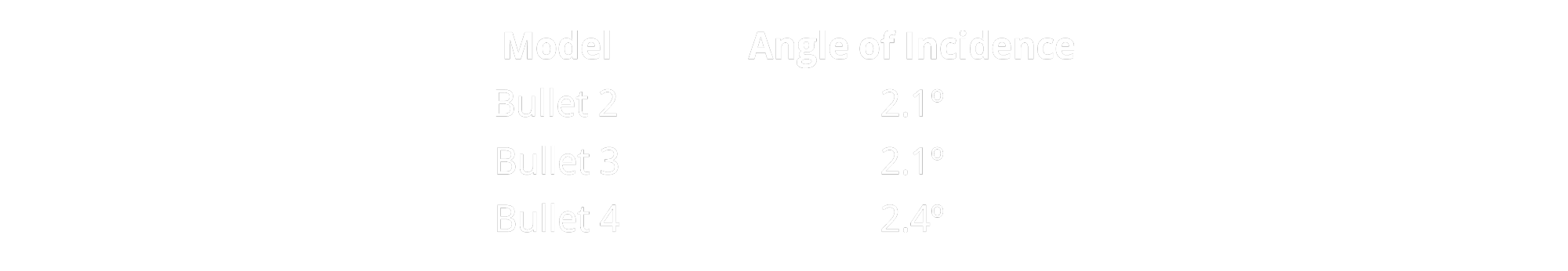

We use shims of various thickness to get to our recommended angle of incidence (relative to the front wing) as follows:

Your wingset comes tuned already with the correct shim (if needed). However you may choose to experiment and adjust the angle of incidence to your personal preference.

If you decide you would like more incidence, and have already removed the rear shim, you can add a shim as shown in order to increase incidence. Make sure the thickness does not exceed .3mm.

Please tighten your wingset mounting screws to the following specification. It is important to not over-tighten them.
